Description
EOTECH
HWS 552 – the most popular holographic sight (red illumination with 68MOA circle & 1MOA dot) in the range, dedicated to the .223 caliber in 62 grains – the use of another caliber will require zeroing and adjustment in elevation/windage.Aluminum and polymer housing – waterproof and dustproof, shock resistant, top glass to ensure optimal light transmission – screen position designed to align with your front & rear sights, in co-witness.
30 illumination settings (20 daylight settings & 10 settings for Gen I through III+ night vision devices), powered by two AA batteries – 1.5V, accepts lithium, alkaline or rechargeable batteries – for an autonomy of 2500 to 2200 hours (depending on the type of battery). Simple and quick mounting on rails1″ Weaver / MIL-STD-1913 – center keyway (for battery compartment access), windage & elevation adjustment in 0.5MOA increments per click. Compact housing – 5.6″ x 2″ x 2.5″ (142.2 x 50.8 x 63.5 mm) & lightweight 11.5 oz (326 grams).

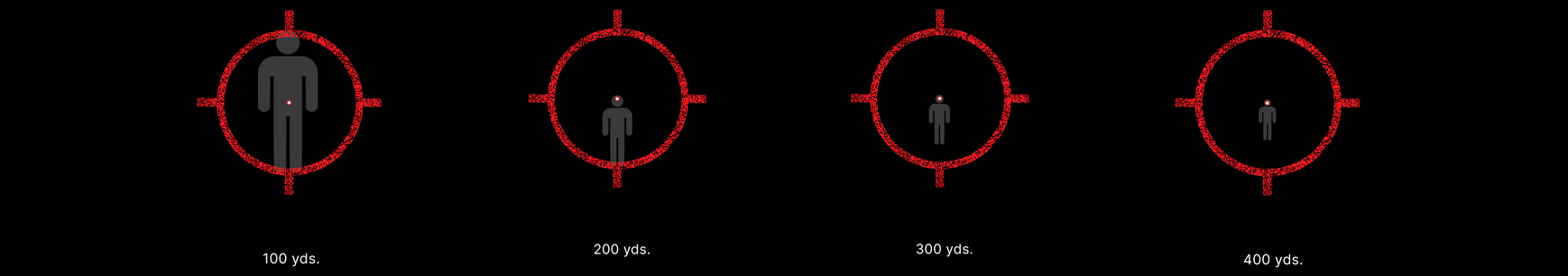

Range Estimation with Unmagnified HWS (.223 caliber in 62 grains)
*1 yard = 0.91 meter
Product data:
- EOTECHHWS 552
- Holographic Sight – Red Illumination with 68MOA Circle & 1MOA Dot
- Dedicated to .223 caliber in 62 grains
- Aluminum & polymer case (waterproof & shock resistant)
- Superior glass, optimal passage of light
- Co-witness mount to align with your rear & front sights
- 30 illumination settings (20 for daytime management / 10 for management with a night vision device)
- Autonomy of 2500 to 2200 hours – power supply via 2 AA batteries
- Rail mountingWeaver 1″ & MIL-STD-1913 (picatinny)
Technical data :
LXWXH
5.6″ x 2″ x 2.5″ (142.2 x 50.8 x 63.5 mm)
Weight
11.5 oz (326 g)
Water Resistant
33ft. (10m) depth
Montage
1″ Weaver gold MIL-STD-1913 rail
Windage & Elevation Adjustment
0.5 MOA per click
Illumination
20 daylight settings10 additional settings for Gen I through III+ night vision devices
Battery
2 x 1.5 V AA batteries – Supports lithium, alkaline or rechargeable
Autonomy
Lithium: 2,500 continuous hours at nominal setting 12 at room temperatureAlkaline: 2,200 continuous hours at nominal setting 12 at room temperature
Operating temperature
-40°F to 140°F (-40°C to 60°C)
In the box :
- HWS 552 Holographic Sight
- Warranty card & user guide
- 02 AA batteries (alkaline)
